| Caratteristiche Principali | ||
|---|---|---|
| Raid: 0/1/5/10 | LAN: 2 x Intel® I210AT + 1 x Mgmt LAN | Form factor: Micro-ATX |
| Tipo Moduli: DDR4 | Socket: Socket H5 (LGA 1200) | Famiglia processore: Intel |
| Connettore Video: 1 x HDMI, 1 x VGA | ||

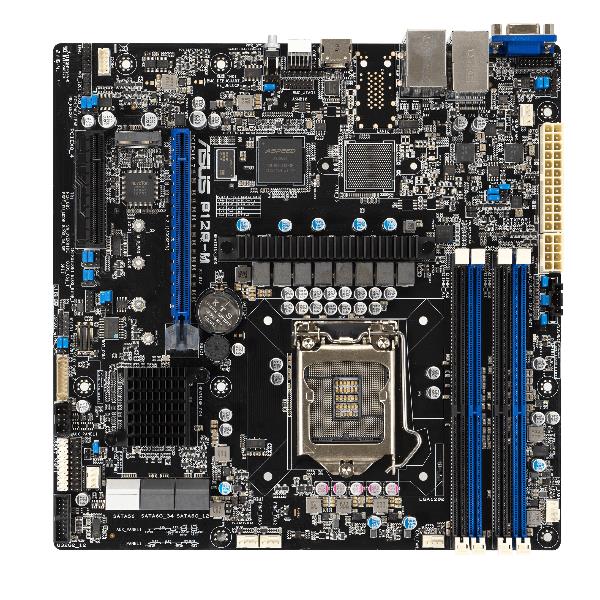

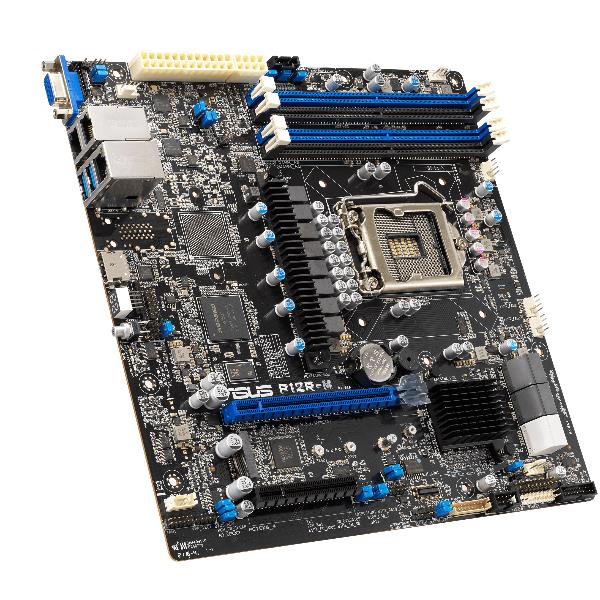

P12R-M
Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
Dual Intel I210AT Gigabit Ethernet with teaming support
One M.2 for up to 32 Gbps performance for faster OS booting
HDMI 1.4 support for high-resolution display maintenance and monitoring
Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
